The compound rest (fig. 9-4), mounted on the compound slide, provides a rigid adjustable mounting for the cutting tool. The compound rest assembly has the following principal parts:

1. The compound rest SWIVEL, which can be swung around to any desired angle and clamped in position. It is graduated over an arc of 90 on each side of its center position for easier setting to the angle selected. This feature is used for machining short, steep tapers, such as the angle on bevel gears, valve disks, and lathe centers.

2. The compound rest, or TOP SLIDE, which is mounted on the swivel section on a dovetailed slide. It is moved by the compound rest feed screw.

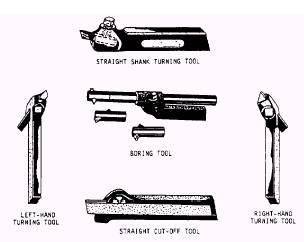

Figure 9-5.Common types of toolholders.

Figure 9-6.Knurling and threading toolholders.

This arrangement permits feeding the tool to the work at any angle (determined by the angular setting of the swivel section). The graduated collars on the crossfeed and compound rest feed screws read in thousandths of an inch for fine adjustment in regulating the depth of cut.

Accessories and Attachments

Accessories are the tools and equipment used in routine lathe machining operations. Attachments are special fixtures that may be mounted on the lathe to expand the use of the lathe to include taper cutting, milling, and grinding. Some of the common accessories and attachments are described in the following paragraphs.

TOOL POST.The sole purpose of the tool post is to provide a rigid support for the tool. It is mounted in the T-slot of the compound rest. A forged tool or a toolholder is inserted in the slot in the tool post. By tightening a setscrew, you will firmly clamp the whole unit in place with the tool in the desired position.

TOOLHOLDERSSome of the common toolholders used in lathe work are illustrated in figure 9-5. Notice the angles at which the tool bits are set in the various holders. These angles must be considered with respect to the angles ground on the tools and the angle that the toolholder is set with respect to the axis of the work.

Two types of toolholders that differ slightly from the common toolholders are those used for threading and knurling. (See fig. 9-6.)

The threading toolholder has a formed cutter which needs to be ground only on the top surface for sharpening. Since the thread form is accurately shaped

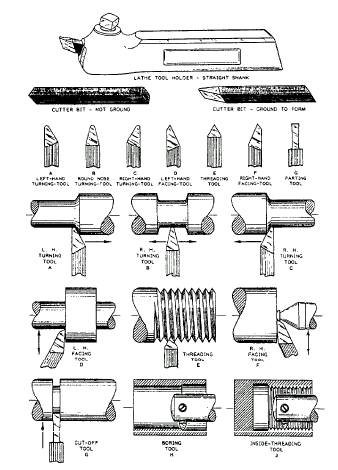

Figure 9-7.Lathe tools and their applications.

over a large arc of the tool, as the surface is worn away by grinding, the cutter can be rotated to the correct position and secured by the setscrew.

A knurling toolholder carries two knurled rollers which impress their patterns on the work as it revolves. The purpose of the knurling tool is to provide a roughened surface on round metal parts, such as knobs, to give a better grip in handling. The knurled rollers come in a variety of patterns.
