TUBE CORRUGATION is a peculiar type of heat blistering that occurs when the boiler water is contaminated with oil. Corrugation may consist of closely spaced, small-diameter, hemispherical bulges, as though the tube metal had been softened and then punched from the inside with a blunt instrument. It may also exist as a herring-bone or chevron pattern on the tube wall nearest the flame, as shown in figure 12-7. It is not known exactly why oil contamination of the boiler water tends to cause this patterned corrugation.

Figure 12-6.-Die marks on the waterside of a tube.

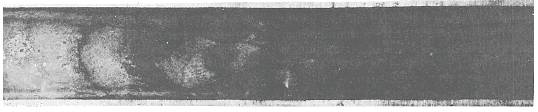

Figure 12-7.-Tube corrugation resulting from oil on waterside.

Waterside Inspection of Drums and Headers

Whenever a boiler is opened for cleaning and overhaul, the internal surfaces of the drums and headers should be carefully inspected for evidence of cracking. Particular attention must be given to steam drum manhole knuckles, knuckles at corners of drum heads, corners of cross boxes and headers, superheater header vent nozzles, and handhole openings. Any defect found must be recorded in the boiler water treatment log and in the maintenance log. These defects should also be reported to the maintenance office so that appropriate repair action can be taken.

Hydrostatic Tests

Boilers are tested hydrostatically for several different purposes. In each case, it is important to understand why a test is being made and to use- but NOT to exceed-the test pressure specified for that particular purpose. In general, most hydrostatic tests are made at one of three test pressures: boiler design pressure, 125% of design pressure, or 150% of design pressure. Other test pressures may be authorized for certain purposes. For example, a test pressure of 150 psi is required for the hydrostatic test given before a boiler undergoes chemical cleaning.

The hydrostatic test at design pressure is required upon the completion of each general overhaul, cleaning, or repair that affects the boiler or its parts and at any other time when it is considered necessary to test the boiler for leakage. The purpose of the hydrostatic test at design pressure is to prove the tightness of all valves, gaskets, flanged joints, rolled joints, welded joints, and boiler fittings.

The test at 125% of design pressure is required after the renewal of pressure parts, after chemical cleaning of the boiler, after minor welding repairs to manhole and handhole seats, and after repairs to tube sheets, such as the correction of gouges and out-of-roundness. The "renewal of pressure parts" includes all tube renewals, rolled or welded, except downcomers and superheater support tubes.

The test at 150% of design pressure is required after welding repairs to headers and drums, including tube sheet cracks and nozzle repairs, after drain and vent nipple repairs, and after renewal or rewelding of superheater support tubes and downcomers. The hydrostatic test at 150% of design pressure is basically a test for strength. This test may be (but is not necessarily) required at the 5-year inspection and test.

Before making a hydrostatic test, rinse out the boiler with freshwater. Using at least 50-psi pressure, play the hose onto all surfaces of the steam drum, the tubes, the nipples, and the headers. Examine the boiler carefully for loose scale, dirt, and other deposits. Be SURE that no tools or other objects are left in the boiler. Remake all joints, being sure that the gaskets and the seating surfaces are clean. Replace the handhole and manhole plates and close up the boiler.

Gag all safety valves. Boiler safety valves must NEVER, under any circumstances, be lifted by hydrostatic pressure. When gagging the safety valves, do not set up on the gag too tightly or you may bend the valve stems. As a rule, the gags should be set up only handtight.

Close all connections on the boiler except to the air vents, the pressure gauges, and the valves of the line through which water is to be pumped to the boiler. Be sure the steam-stop valves are completely closed and that there will be no leakage of water through them.

After all preparations have been made, use the feed pump to fill the boiler completely. After all air has been expelled from the boiler, close the air vents and build up the hydrostatic pressure required for the particular test you are making. A hand boiler test pump can be used in building up the hydrostatic test pressure. If you do not have a hand test pump, buildup the required test pressure by continuing to run the feed pump after the boiler has been filled. In any case, be very careful that you do not exceed the specified test pressure. After the boiler is full, it takes very little additional pumping to build up pressure.

To avoid complications arising from changes in pressure caused by changes in temperature, you should use water that is approximately the same temperature as the boiler and the fireroom. In any case, the temperature of the water must be at least 70F.

While the hydrostatic pressure is being built up, the boiler should be very carefully checked for signs of strain or deformation. If there is any indication of permanent deformation, stop the hydrostatic test and make the necessary repairs. If it is not possible to make the repairs right away, give a second hydrostatic test, progressing slowly up to 20 psi less than the pressure at which the first test was stopped. If the boiler passes this second test successfully, the new working pressure of the boiler must be two-thirds of the test pressure reached on the second test, and all safety valves must be set accordingly.

Do not make any attempt to set up on leaky handhole or manhole plates until the pressure has been pumped up to within 50 psi of the test pressure. After all manhole and handhole leakage has been remedied, pump the pressure on up to test pressure. Check the pressure drop over a period of time. If all valves have been baked off, the maximum acceptable pressure drop is 1.5% of the test pressure over a period of 4 hours. If connected valves are merely closed and left installed, a drop test will not indicate the true condition of the boiler. The pressure drop test is conducted at boiler design pressure.

A tube seat should not be considered tight unless it is bone dry at the test pressure. Any tube that cannot be made tight under a hydrostatic test should be renewed or rerolled.

If there is an excessive pressure drop when there is only a slight leakage at tube joints, handholes, and manholes, the loss of pressure is almost certainly caused by leakage through valves and fittings. Valves and fittings should be overhauled and made tight.

Five-Year Inspection and Test

At 5-year intervals, each boiler must be inspected for integrity of welds and nozzle connections. Lagging must be removed from drums and headers sufficiently to expose the welded joints and the nozzle connections. The welds and nozzle connections must be inspected visually from both inside and outside. If there is any doubt about the welds, they should be inspected by magnetic particle inspection or dye penetrant inspection. If any area, through examination (visual, magnetic particle, or dye penetrant) reveals that a 150-percent boiler design pressure hydrostatic test is warranted, and the area proves to be tight under test pressure, further investigation of the suspected area should be conducted. The investigation should continue until the true condition of the area is known, and if necessary, appropriate repairs are made.
